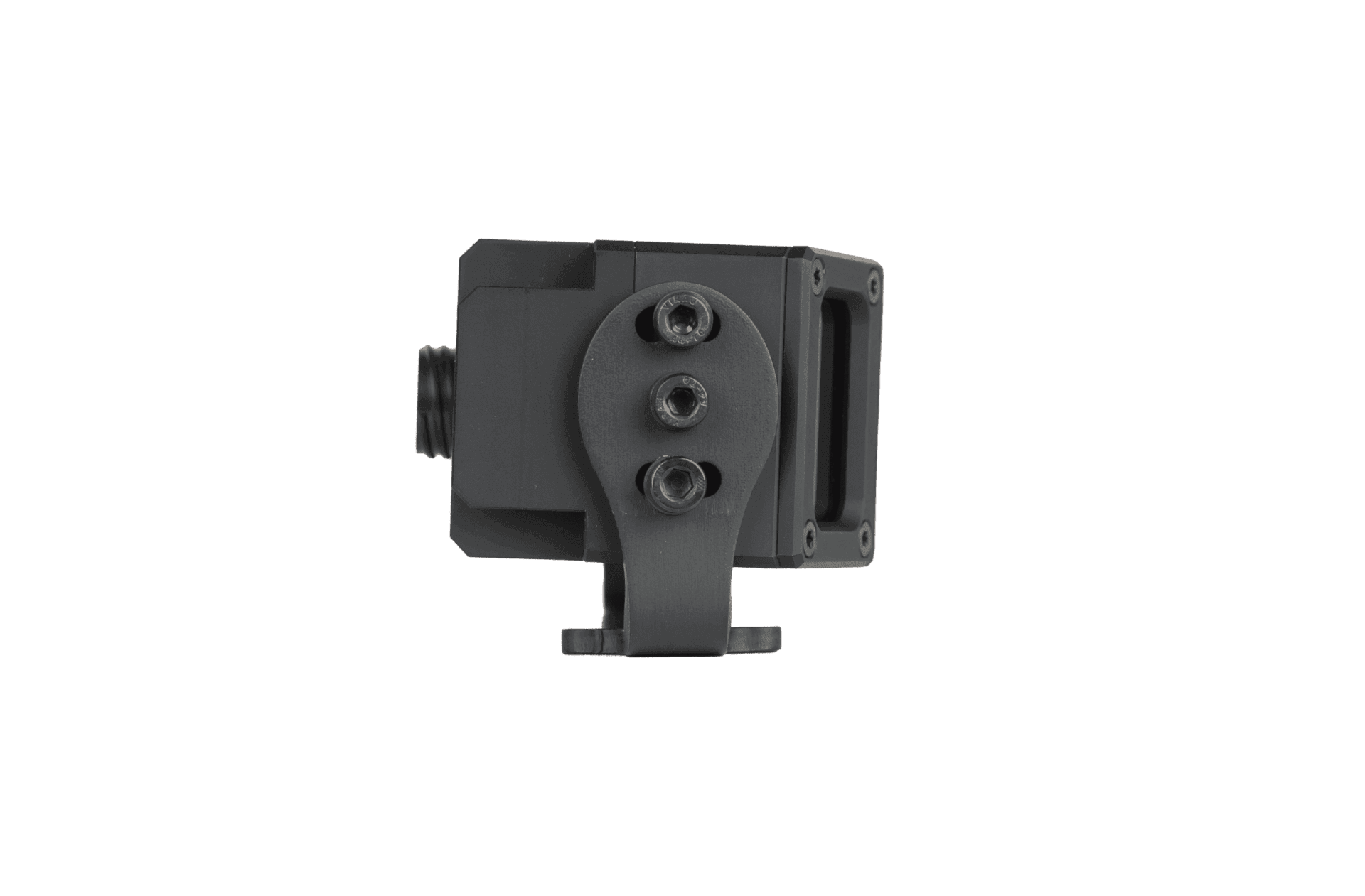

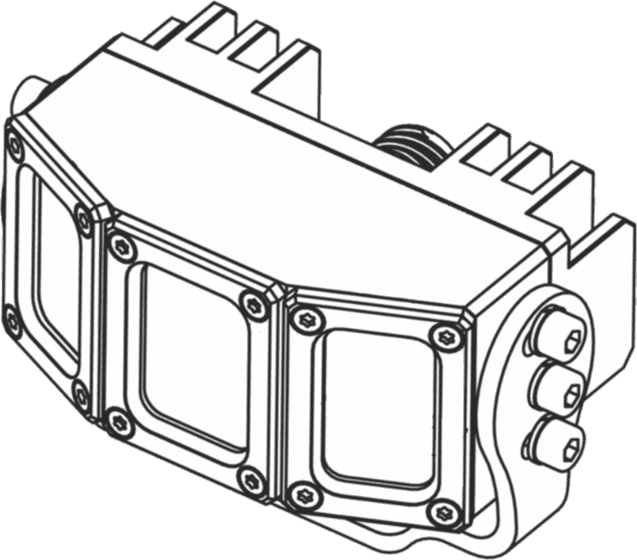

The RAVEN IR Illuminator is a best-in-class product, enabling driver vision enhancement systems with focused controllable IR light. Designed to deliver highly controlled, uniform infrared illumination that strengthens the performance of electro-optical and IR sensors while maintaining minimal signature.
Purpose-Built Searchlight for Covert Surveillance and Low Detectability
Operational effectiveness in long-range surveillance and reconnaissance operations depends on the ability to remain undetected while achieving optimal illumination. RAVEN’s IR searchlight capabilities optimize visual and acoustic signature reduction to meet the requirements of security agencies, border authorities, and defense organizations.

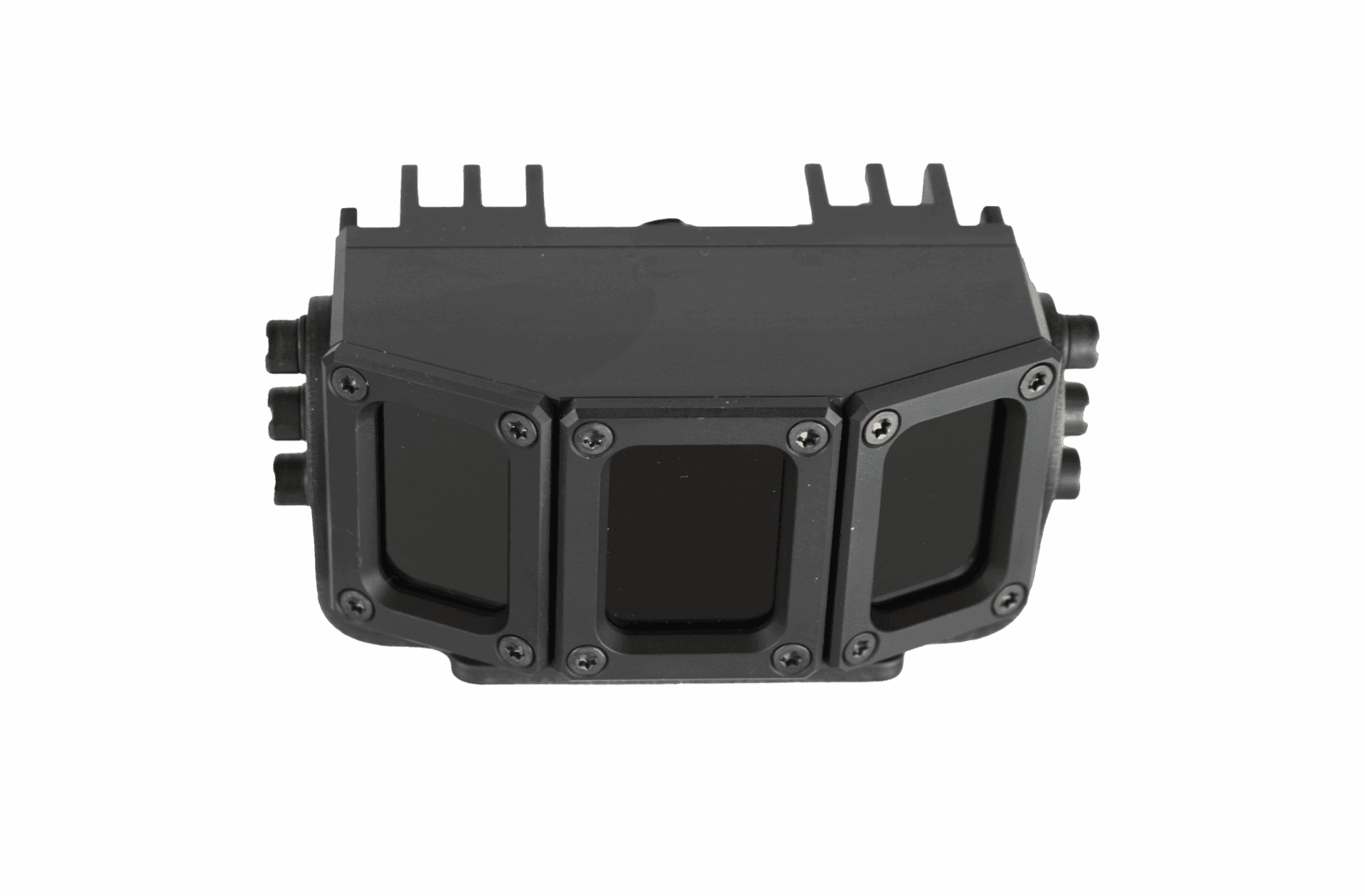

The RAVEN IR Illuminator is engineered for seamless integration with advanced IR cameras, night vision goggles, and multi-sensor surveillance platforms. Precision optics produce a squared illumination pattern matched to standard sensor aspect ratios, reducing edge falloff and eliminating stray light. This ensures consistent output which in turn delivers clear images for enhanced situational awareness during no or low-light missions.
See also:
Integration-First Design for Flexible Deployment
Wiseled’s integration-first approach ensures RAVEN can be rapidly deployed across a wide spectrum of professional platforms, without unnecessary complexity for host systems. RAVEN has options for wavelength and operating functions which can be tailored to suit platform requirements.
For platform integration services, see:
Platform Compatibility
Modular, Robust Engineering
Engineered for Durable Illumination and Mission Reliability
The RAVEN IR Illumination System is built for reliability and performance in demanding operational situations. All materials and engineering practices align with defense standards to guarantee long-term performance in field deployments.
Resilience Features
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Field of View | 80° horizontal, 30° vertical |
| Wavelength Options | 850nm / 940nm / 1550nm |
| Power Consumption | 25W (Nominal) / <3W (Standby) |
| Input Voltage | 18–32V |
| Weight | 600 grams |
| Dimensions | 100 mm × 67 mm × 48 mm |
| Certifications | MIL-STD-461G, MIL-STD-810H, MIL-STD-1275E |
| Material | Hard-anodized aluminum, MIL-A-8625 Type III |
The RAVEN IR Illumination System provides operational advantages where reliability, integration, and illumination performance are essential. Its integration-first design, certified durability and advanced technology ensure RAVEN is a trusted asset for security and defence applications – enabling covert operations and surveillance activity.
For detailed guidance on integrating IR illumination systems or to access technical documentation, Wiseled’s technical team is available to support your deployment.
Border Security & Perimeter Protection
Applications requiring robust searchlight support in perimeter environments.
Infrared (IR) Illumination
Additional covert and long-range illumination solutions.
Visible Searchlights
High-performance visible searchlight platforms.
Vehicle & Platform Integration
Integration services for illumination systems.
Interested in tactical searchlight solutions for your fleet?
Explore FALCON | Tactical Searchlight & Illumination Platform for high-output, mission-driven illumination.
RAVEN FAQ
Introduction to the FAQ with some text
For more inquiries

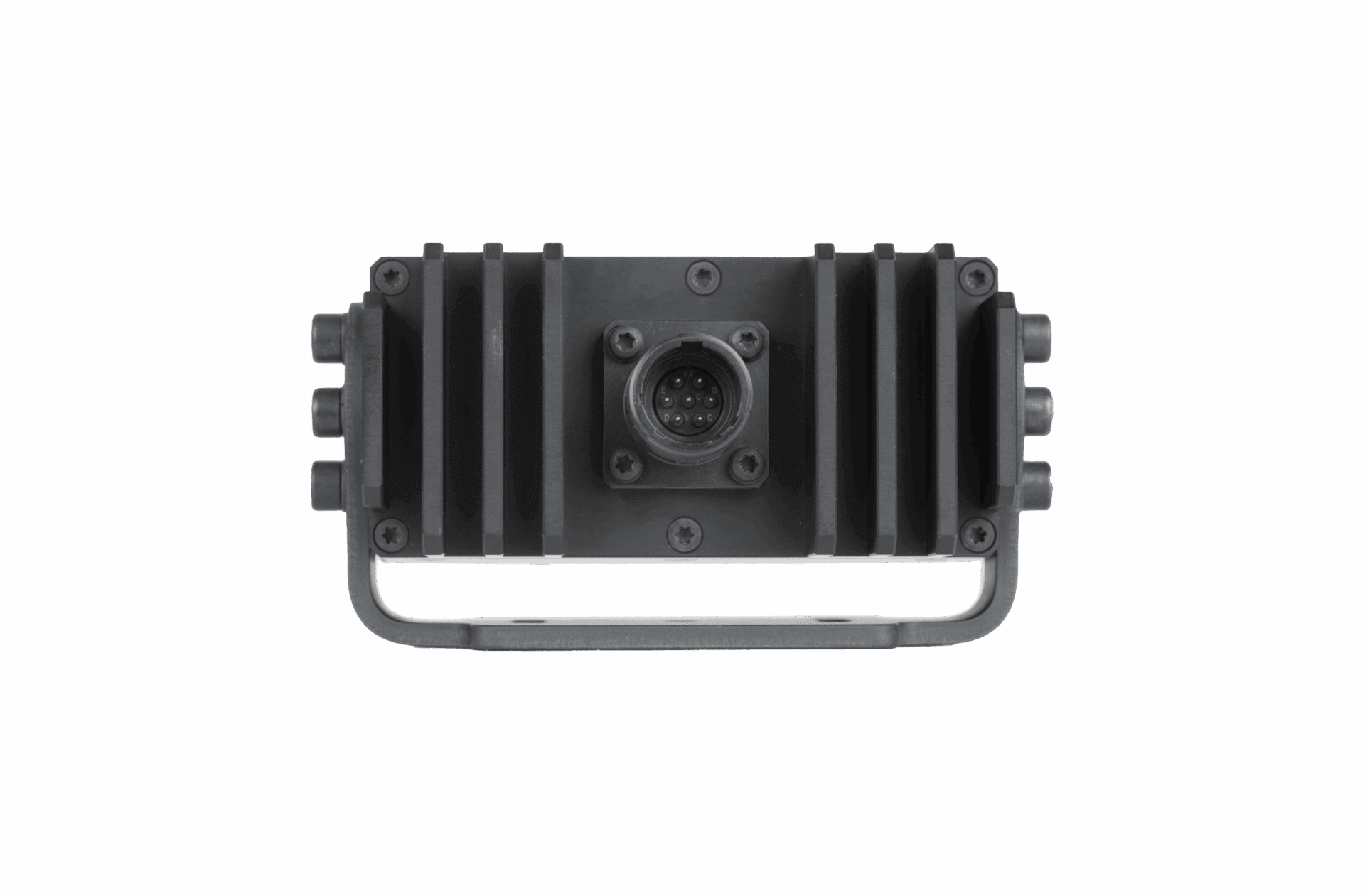

Yes. The rectangular illumination pattern and standard MIL connector configuration are designed to reduce integration complexity. Contact sales@wiseled.com for platform-specific documentation.

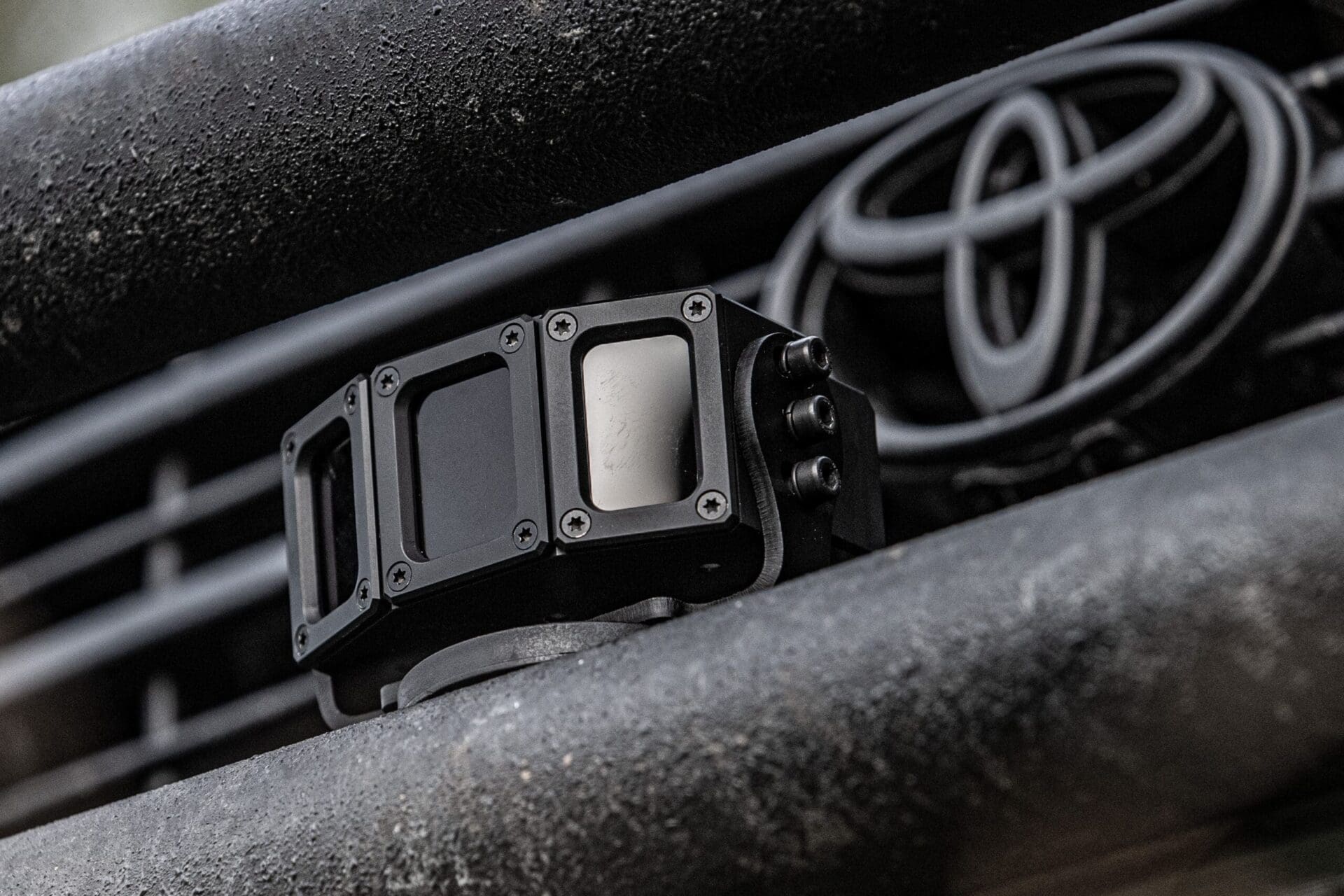

The RAVEN is designed for mobile platforms requiring driver vision enhancement (DVE). It integrates into armoured vehicles, patrol vehicles, and other land platforms where covert driving capability under NVG or thermal sensor systems is required.
850nm, 940nm, and 1550nm — selectable to match the platform’s sensor and NVG/thermal configuration.
Yes — RAVEN is deployed on vehicle-mounted DVE systems, UGV/UAS platforms, and mobile reconnaissance suites.
